Custom-designed inclined stainless steel screw conveyor, automatic feeding system for transporting non-free-flowing powdered products such as flour, talcum powder, coffee, milk powder, etc.

Custom-designed inclined stainless steel screw conveyor, automatic feeding system for transporting non-free-flowing powdered products such as flour, talcum powder, coffee, milk powder, etc.

الاسم التجاري:	WeSeW
رقم الطراز:	RG-717
الـ MOQ:	1 جهاز كمبيوتر
السعر:	Price Negotiation
شروط الدفع:	/ تي تي، ويسترن يونيون
القدرة على التوريد:	1000000 قطع شهريا

معلومات مفصلة

وصف المنتج

معلومات مفصلة

مكان المنشأ:

الصين

إصدار الشهادات:

CE,UL

اتجاه الدوران:

في اتجاه عقارب الساعة/عكس اتجاه عقارب الساعة

نوع المسمار:

حلزونية أو مقطعية

قوة:

قوة الشد العالية

الصناعات المعمول بها:

مصنع التصنيع والطاقة والتعدين

الاستخدام:

الناقل

وضع التشغيل:

يدوي أو أوتوماتيكي

زاوية الميل:

0-45 درجة

سمات:

تصميم مرن، سهل التنظيف

تفاصيل التغليف:

حالة خشبية

القدرة على العرض:

1000000 قطع شهريا

إبراز:

stainless steel screw conveyor,automatic feeding system for powder,inclined screw auger feeder

automatic feeding system for powder

inclined screw auger feeder

وصف المنتج

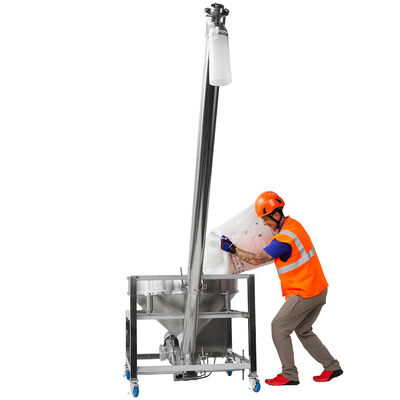

Custom Inclined Stainless Steel Screw Conveyor

This custom-designed inclined stainless steel screw conveyor provides an automatic feeding system specifically engineered for transporting non-free-flowing powdered products. Ideal for materials such as flour, talcum powder, coffee, and milk powder, this auger elevator efficiently handles bulk quantities in medium to high-volume packaging environments.

Key Features

Caster-mounted frame with rotating wheels for enhanced in-plant mobility
Built-in proximity switch for seamless integration with dispensing and filling machines

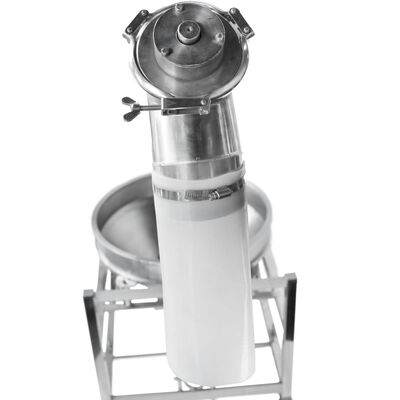

Removable end flange for easy product jam clearance
Push-type emergency stop button for enhanced safety
Automatic & Manual Selector button for operational versatility

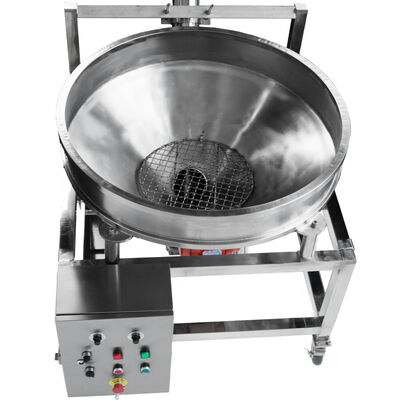

Hopper with vibrating technology for consistent product movement
Optimized for difficult-to-handle, non-free-flowing bulk powders
Rugged stainless steel construction for durability and easy sanitation
Adjustable auger tube angle for customized application requirements

Technical Specifications

Operation	Automatic
Actuation	Electric
Base Type	Self Standing
Construction	Rugged Stainless Steel
Elevator Tube Diameter	114.3 mm / 4.5 in
Dispenser Drop Point Height	221.5 cm / 87.2 in
Hopper Diameter	98 cm / 38.6 in
Hopper Exit Opening Diameter	14 cm / 5.5 in
Hopper Height	92 cm / 36.2 in
Brand	JORESTECH
Includes	Proximity Switch To Integrate With Dispenser Machine, Removable End Flange
Casters	Yes
Fuse/Breaker Protected	Yes
Plug Type	Bare Wire
Cable Length	3 m / 9.8 ft
Voltage	220 V / 50-60 hz
Wattage/Phases/Amps	1,500 W / 3Ph / 5A
Machine Dimensions (LxWxH)	284 x 98 x 224 cm / 111.81 x 38.58 x 88.19 in
Shipping Dimensions (LxWxH)	125 x 13 x 16 in / 317.5 x 33.02 x 40.64 cm & 55 x 40 x 44 in / 139.7 x 101.6 x 111.76 cm
Shipping Weight	81 & 190 Kg / 179 & 419 lbs
Capacity	3 cubic meter / hr 790 Gal
