| الاسم التجاري: | WeSeW |
| رقم الطراز: | الصين |
| الـ MOQ: | 1 جهاز كمبيوتر |
| السعر: | US$5500~US$70,000 per pc |
| شروط الدفع: | / تي تي، ويسترن يونيون |
| القدرة على التوريد: | 10,000 قطعة شهريا |

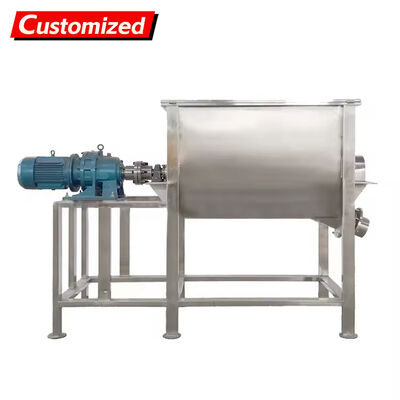

High-efficiency stainless steel ribbon mixer designed for blending various powder products including plastics, chemicals, food, and fertilizers. Features porous design and customizable specifications.
| Model | SH-100L |
| Total Volume | 100L |
| Effective Volume | 40-70L |
| Power | 1.5 kW |
| Spindle Speed | 15-40 r.p.m |
| Dimensions (L*W*H) | 1700*600*1500mm |
| Weight | 250 kg |
| Material Options | SUS304, SUS304L, SUS316, SUS316L, Carbon Steel |
| Voltage | 220V, 380V or optional |
| Warranty | 1.5 years |

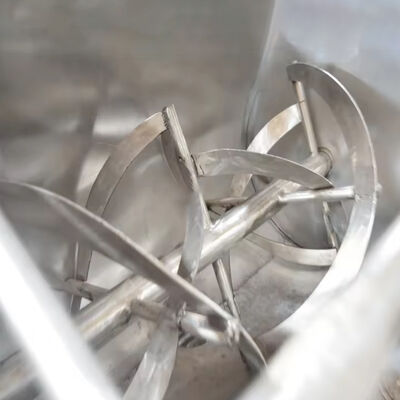

The horizontal ribbon mixer utilizes internal and external spiral ribbons to create optimal material movement. The inner spiral pushes material from the center to the sides, while the outer spiral moves material from the sides to the center, creating efficient convection circulation. This design ensures rapid, uniform mixing of various powder products in minimal time.
| Type | Capacity (L/time) | Power (kW) | Weight (Kg) |
|---|---|---|---|
| SH-100 | 40-80 | 2.2 | 220 |
| SH-150 | 60-120 | 3 | 350 |
| SH-250 | 100-200 | 5.5 | 500 |
| SH-500 | 200-400 | 11 | 900 |
| SH-1000 | 400-800 | 18.5 | 1200 |
| SH-1500 | 600-1200 | 22 | 1600 |
| SH-2000 | 800-1600 | 30 | 2000 |
