| الاسم التجاري: | WeSeW |
| رقم الطراز: | اي سي 0075 |
| الـ MOQ: | 1 جهاز كمبيوتر |
| السعر: | US$200~US$1000/pc |
| شروط الدفع: | / تي تي، ويسترن يونيون |
| القدرة على التوريد: | 10,000 قطعة شهريا |
| Use | Harvesters |
|---|---|
| Type | Blades |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Weight (kg) | 20 |
| Dimension (OD*ID*P*T) | Customized |
| Material | Carbon steel, manganese steel, stainless steel, wear-resistant steel |
| Applicable Industries | Screw conveyor, agricultural machine, energy & Mining |
| Usage | Material Transmission |
| Advantage | Easy Operation, High Efficiency |
| OD (mm) | ≤500mm |
| Strip Width (mm) | ≤80mm |
| Thickness (mm) | ≤20mm |
Thickness 2-5mm: Strip width ≤30mm
Thickness 6-10mm: Strip width ≤50mm
Thickness 10-20mm: Strip width ≤80mm
Manufactured using winding or segmented stamping processes, thickness deviation can be controlled within ±0.1mm, resulting in substantial improvement in mechanical properties. Maximum stress is reduced by more than 15% compared to traditional blades.
Made with 304 or 316L stainless steel, they offer outstanding corrosion resistance, with a service life three times that of carbon steel blades in chloride ion and acid/alkali environments. Surface roughness Ra≤0.8μm reduces fluid resistance by 20%, lowering conveying energy consumption.

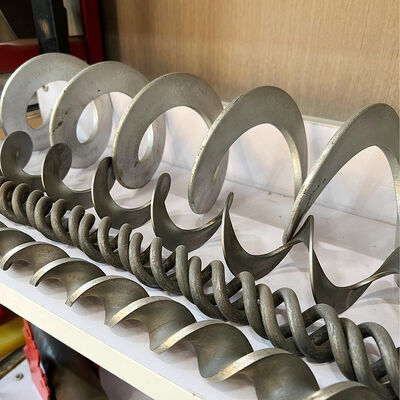

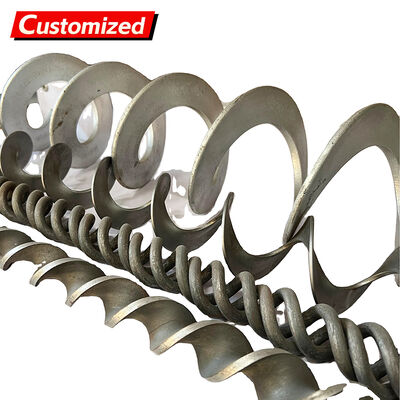

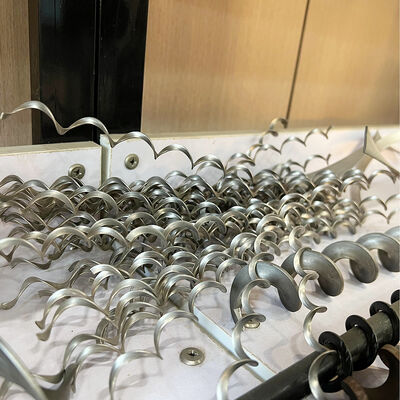

These blades are suitable for various applications: small-sized wound blades for food processing machinery and agricultural harvesters (conveying efficiencies up to 20t/h); large-sized segmented stamped blades for heavy-duty conveying in mines and cement production lines. 40mm thick wear-resistant steel blades have a lifespan of over 8 years.
